3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M

Product Categories
Jiangsu OUCO Heavy Industry and Technology Co.,Ltd
Contact Now

3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M

Brand Name : OUCO

Model Number : OUCO-3T4M-SB-00

Certification : CCS/ABS/BV/ISO9001

Place of Origin : JIANGSU,WUXI

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : Shipping Container/Wood Crate/nude

SWL : 3T4M

Working Radius : 1~4m

Hoisting Speed : 0~10m/min

Hoisting Height : 25m

Slewing Speed : 0.8r/min

Slewing Angle : 360°

Luffing Time : 45s

Type : Hydraulic

Contact Now

3T Hydraulic Ship Deck Crane Stiff Boom work radius 4M

Product description

Stiff boom cranes are based on a base slewing design with hydraulic cylinders and a hydraulic power system.
Stiff boom cranes with lifting torque from 1 ton to 200 ton, customized cranes can be provided according to customer requirements.
Stiff boom cranes have a wide range of certifications and numerous optional features.
Stiff boom cranes are commonly used in docks, equipment and port conditions.

Main Features and advantages

The variable speed hoist can automatically adjust to the maximum speed suitable for the load.
Our cranes are based on many years of experience in designing and manufacturing cranes and other similar equipment.
Jib cranes are suitable for all kinds of ships, with simple structure, low power consumption and high efficiency.
Welded high-strength box boom makes maintenance easy.
Equipped with on-hook limiter, overload limiter, emergency stop button and other safety protection devices.

Technical Specification

SWL 3t@4m
Working Radius 1~4m
Hoisting Speed 0~10m/min
Hoisting Height 25m
Slewing Speed ~0.8r/min
Slewing Angle 360°
Luffing Time ~45s
Tirm ≤2°
Heel ≤5°
Motor Type Y160K-4-H
Motor Power 15KW
Motor Speed 1460r/min
Power source AC415V, 50Hz,3P
Protect Class IP56
Insulate Class F
Working Type S1

General Arrangement

3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M

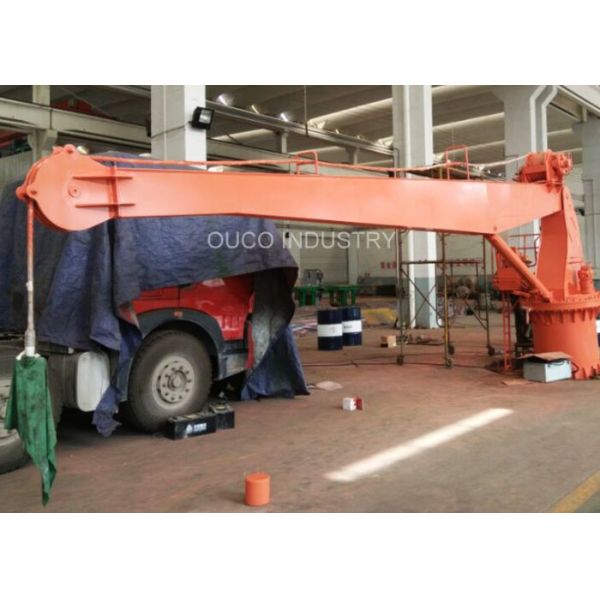

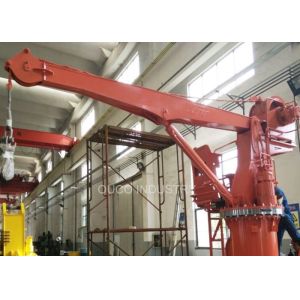

Detailed Images

3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M

3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M

Packing&Shipping

3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M
