Small Mini Easy Operation Yacht Crane For Ship With 1.5t Loading Capacity
Product description
OUCO 1.5T4M yacht crane is a kind of ship's hoisting equipment usually set in the cabin deck which contents high technology of electricity, liquid, machine integration of deck. With the advantageof easy manipulation, impact resistance, good performance,safety and reliability, it can make a good use of the limited space of port, yard and other places.
Main Features and advantages
Easy maintenance at all situation
Self contained unit with integrated hydraulic power pack
Fail-safe brakes on all movements
Fully enclosed and equipped operator cabin with air condition
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
Base on many year's design and fabrication experience of crane and other similar equipment
Suitable for all kinds of ships and low power consumption and high efficiency
Welded and high strength box boom for easy maintenance
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
Technical Specification
| SWL | see load chart |
| Working Radius | 1.5-4m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 10m |
| Slewing Speed | ~1.5r/min |
| Slewing Angle | 360° |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Power | 11KW |
| Protection Class | IP56 |
| Insukate Class | F |
| Design Temperature | -10° ~ +45° |
| Luffing angle | 0-75° |
| Dead weight | 900kg(include HPU) |

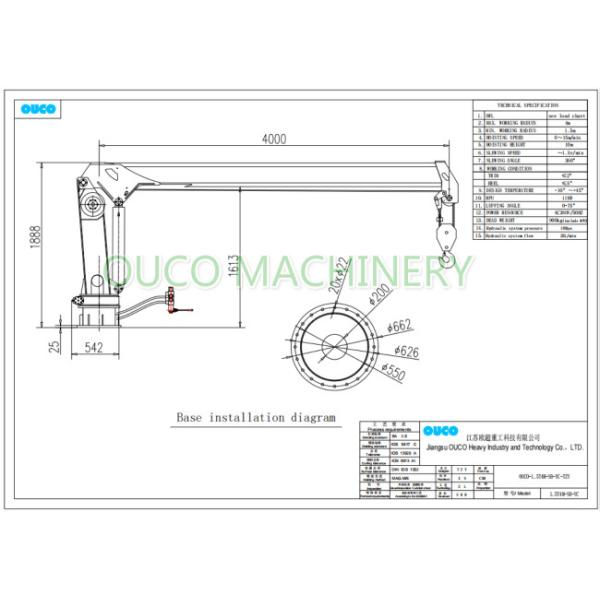

General Arrangement
Customer Bulid
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Detailed Images
Packing&Shipping
FAQ:
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lifting tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can guide the installation train your crew on vessel.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
For more details, please feel free to contact me as below:
Anything else? I am pleased to answer all your questions and doubts. Please feel free to contact me.
